Using the list/grid switcher

Divi 5 only

Switcher settings are on Archive Loop under Grid style → Grid / List View Switch. See the module reference for every related field.

Purpose​

The list/grid switcher adds a control so visitors choose how filtered results display—dense Grid cards or a vertical List—without reloading the page.

Enable the switcher​

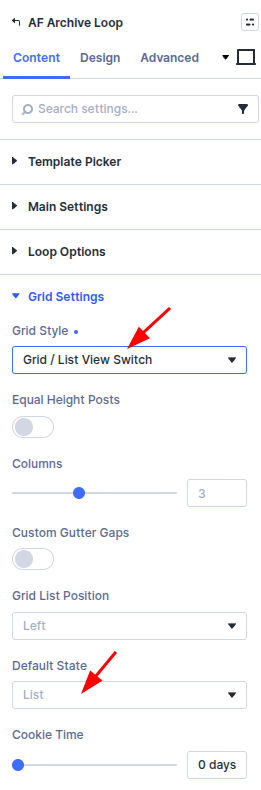

  1. Edit Archive Loop on the page.
  2. Under Grid style, choose Grid / List View Switch instead of grid-only or list-only.
  3. Set Grid list position (left or right of the loop header).
  4. Choose Default state (grid or list) for the first visit.
  5. Set Cookie time (days) to remember the visitor’s choice; use 0 for session-only memory.

After Ajax filtering, the active view persists for the new result set.

Custom loop layouts​

Built-in loop templates include list/grid styling out of the box. When you use Loop Style → Loop Layout with a Divi Library layout, you design one card that must work in both views. The plugin toggles layout with CSS classes on the Archive Loop wrapper—it does not reload different layouts per view.

Typical workflow:

  1. Set Loop Style to Loop Layout and pick your library layout.
  2. Set Grid style to Grid / List View Switch.
  3. Build the library layout with Post Thumbnail, Post Title, and other modules. See Custom loop item modules.
  4. Add helper classes on modules (see below) and write CSS in Divi → Theme Options → Custom CSS or your child theme.

If grid view looks wrong with a custom layout, you usually need CSS for both views—column widths, image size, and spacing are not applied automatically the way they are for built-in templates.

How the switcher works​

When Grid / List View Switch is enabled, the Archive Loop module gets wrapper classes such as:

ClassWhen it applies
grid-layout-grid_listSwitcher mode is on
de-grid-viewGrid view is active (default or visitor choice)
de-list-viewList view is active
de-position-left-view / de-position-right-viewSwitcher button alignment

Each loop item is wrapped in grid-col (or li.product for WooCommerce) and grid-item-cont. The outer results container uses divi-filter-archive-loop and custom-loop-layout for library layouts.

The switcher buttons live in .divi-engine-grid-list-view-switcher. Clicking grid or list swaps de-grid-view / de-list-view on the Archive Loop and stores the choice in the divi_engine_grid_list_view cookie.

Helper classes for your layout​

Add these in each module’s Advanced → CSS ID & Classes → CSS Class field (not in Theme Options).

ClassPurpose
de-hide-list-viewHide this element in list view
de-hide-grid-viewHide this element in grid view
de-no-stackKeep columns side-by-side in grid view (add on the Row that should not stack)

Example: hide a “Read more” button in list view—add de-hide-list-view to that button module.

Built-in templates use these classes internally. For custom layouts, you combine them with your own CSS.

Custom CSS for grid and list views​

Write view-specific rules in Theme Options → Custom CSS (or your child theme). Scope selectors with the wrapper classes the plugin adds to Archive Loop.

Hide elements (handled by the plugin if you used the helper classes above):

.de-list-view .de-hide-list-view,
.de-grid-view .de-hide-grid-view {
  display: none !important;
}

These rules are already loaded by the plugin; you only need them if you override display elsewhere.

Style an element differently per view (add your own class, e.g. my-loop-image, on the module):

/* Grid: full-width card stack */
.grid-layout-grid_list.de-grid-view .my-loop-image {
  width: 100%;
}

/* List: thumbnail left, content right */
.grid-layout-grid_list.de-list-view .my-loop-image {
  width: 33%;
  float: left;
  margin-right: 3%;
}

.grid-layout-grid_list.de-list-view .my-loop-content {
  width: 64%;
  float: left;
}

Side-by-side columns in grid view — on a Row inside the loop item, add de-no-stack so columns stay horizontal in grid view. In list view, the plugin forces a single column (grid-template-columns: repeat(1, …)).

Full-width columns inside each grid cell — in grid view, nested Divi columns inside .grid-item-cont are forced to 100% width so each card stacks vertically. Use de-no-stack on the Row when you need a multi-column card in grid view.

Built-in loop templates​

If you use Loop Style → Loop Templates instead of a library layout, premade templates (for example Divi Blog Style) already include list/grid CSS. You only need the helper classes and custom CSS when building your own Loop Layout.
